Understanding GPS and WAAS in Aviation Navigation
Course Objectives
- Comprehend the fundamentals of the Global Positioning System (GPS) and its role in aviation.
- Understand the function and benefits of the Wide Area Augmentation System (WAAS) in enhancing GPS for aviation purposes.
- Recognize how GPS and WAAS contribute to safe and efficient flight operations.
This course contains 4 modules and should take approximately 5 minutes to complete. Each module ends with a quick knowledge check, followed by a final exam.
Module 1: Introduction to GPS in Aviation
What is GPS?
- A space-based radio-navigation system providing accurate position, velocity, and time information globally.
- Consists of a constellation of satellites orbiting approximately 11,000 miles above Earth.
How GPS Works:
- Satellites transmit signals containing their location and time.
- Receivers calculate their position by measuring the time it takes for signals to arrive from multiple satellites.
GPS in Aviation:
- Enables Area Navigation (RNAV) and Required Navigation Performance (RNP), allowing aircraft to fly flexible, precise flight paths.
Module 1 Knowledge Check
How high do GPS satellites orbit above Earth?
What does GPS enable in aviation navigation?
Module 2: Understanding WAAS
What is WAAS?
- The Wide Area Augmentation System enhances GPS accuracy, integrity, and availability.
- Developed by the FAA to support all phases of flight, including en-route navigation, departures, and arrivals.

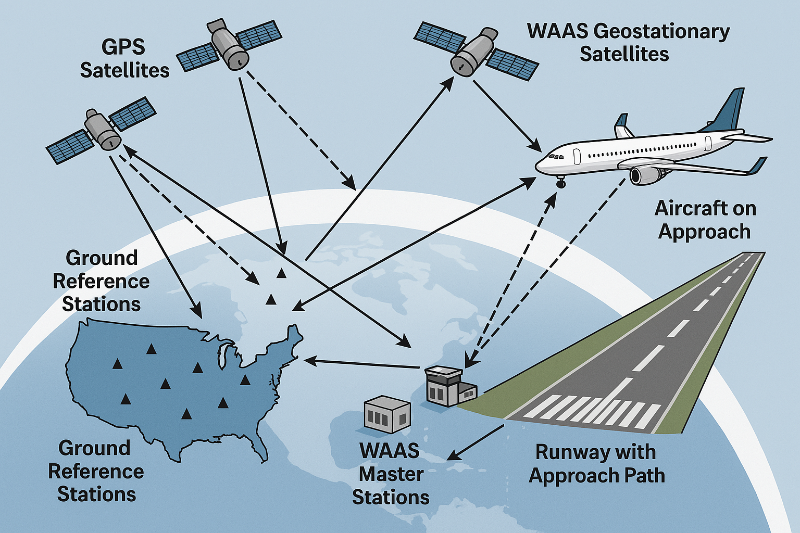

How WAAS Works:
- Ground reference stations monitor GPS signals and send data to master stations.
- Master stations compute corrections and send them to geostationary satellites.
- These satellites broadcast the corrections to WAAS-enabled GPS receivers, improving position accuracy.
Module 2 Knowledge Check
What was WAAS developed to support?
How are GPS corrections transmitted to WAAS-enabled receivers?
Module 3: Benefits of GPS and WAAS in Aviation
Enhanced Accuracy:
- WAAS improves GPS accuracy for en-route, terminal, and approach operations across the continental U.S., Alaska, and parts of Canada and Mexico.
Improved Safety:
- Provides precise navigation and approach capabilities, reducing the risk of accidents.
Increased Efficiency:
- Enables more direct flight paths and efficient airspace use, leading to fuel savings and reduced emissions.
Expanded Access:
- Supports instrument approaches at airports without ground-based navigation aids, increasing accessibility in poor weather conditions.
Module 3 Knowledge Check
How does WAAS benefit smaller airports?
What environmental benefit does improved GPS/WAAS navigation provide?
Module 4: Practical Applications and Considerations
Operational Use:
- Pilots use GPS/WAAS for navigation and approaches, ensuring compliance with air traffic control and flight safety standards.
Equipment Requirements:
- Aircraft must be equipped with WAAS-enabled GPS receivers to utilize the system's benefits.
Limitations and Backup Systems:
- While GPS/WAAS provides significant advantages, pilots should be aware of potential limitations and the importance of alternative navigation aids.
- Potential GPS signal interruptions or interference may occur.
- Traditional navigation systems serve as important backups.
Module 4 Knowledge Check
What equipment is required to use WAAS benefits?
Why are backup navigation systems important despite GPS/WAAS advantages?
Final Exam: Understanding GPS and WAAS in Aviation Navigation
1. At what altitude do GPS satellites orbit?
2. What does WAAS stand for?
3. How does WAAS enhance GPS?
4. Which entity developed WAAS?
5. What is a key environmental benefit of GPS/WAAS navigation?
6. What is required for an aircraft to utilize WAAS benefits?
7. What is one way WAAS improves access to airports?
8. Why should pilots be aware of backup navigation systems?
Current Score: 0%
Note: You need to achieve at least 70% and answer all questions correctly to proceed.
Course Completed!
Congratulations on completing the "Understanding GPS and WAAS in Aviation Navigation" course.
You've gained valuable knowledge about:
- The fundamentals of GPS and its role in aviation
- How WAAS enhances GPS for aviation purposes
- The benefits of these technologies for flight safety and efficiency
- Practical applications and important considerations
